General description

Suspension / General description

The front suspension is of independent MacPherson strut type.

The rear suspension consists of a beam axle with trailing arms, coil springs and double acting gas-filled telescopic shock absorbers.

Operations covering the hubs, roadwheels and tyres are described in Chapter 7.

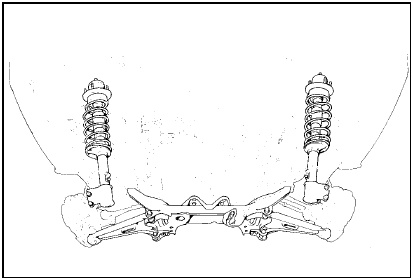

Fig. 11.1 Front suspension arrangement (Sec 1)

Fig. 11.2 Rear suspension arrangement (Sec 1)
